0. Lab Setup

This page describes the full environment used for the SOC L2 lab, including virtual machines, network layout, tools, and configurations.

Environment Overview

A homelab for learning and practising SOC L2 work, simulating attacks and performing analysis using Blue Team tools.

Virtual Machines & Network Information

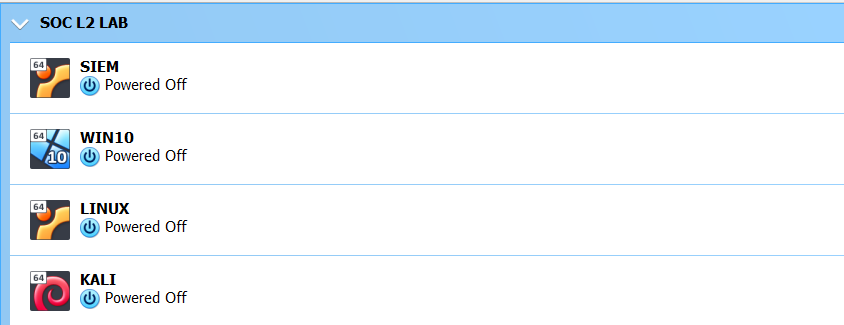

Four VMs in VirtualBox 7.0: SIEM/IR platform, Kali Linux, Windows 10, and a Linux Web Server.

• SIEM and IR – Wazuh + DFIR‑IRIS (analysis platform)
• Kali Linux – Attacker machine
• Windows 10 – Wazuh agent, Windows attack surface
• Linux Web Server – Grav CMS + Nginx + Wazuh agent

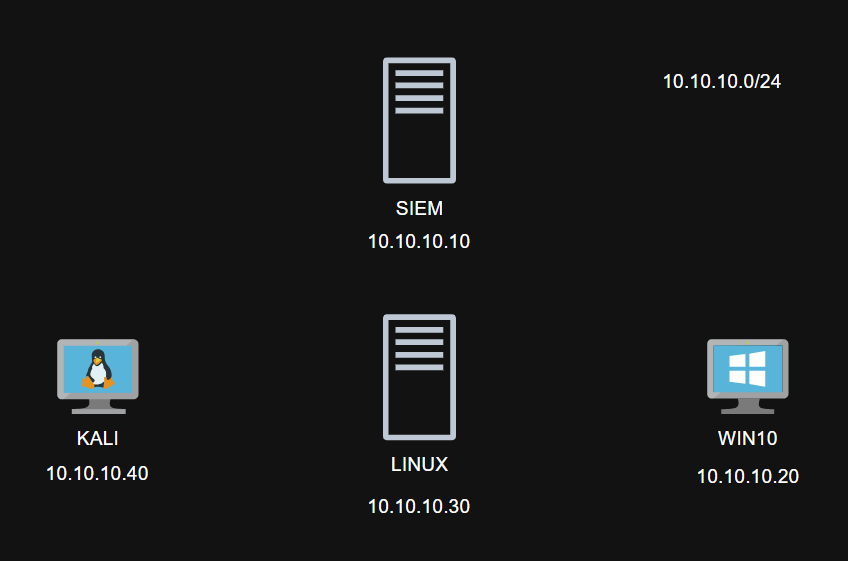

Each VM uses two network adapters: NAT (Internet) and Host‑Only (internal SOC network 10.10.10.0/24). Port‑forwarding is configured via VirtualBox Manager as needed.

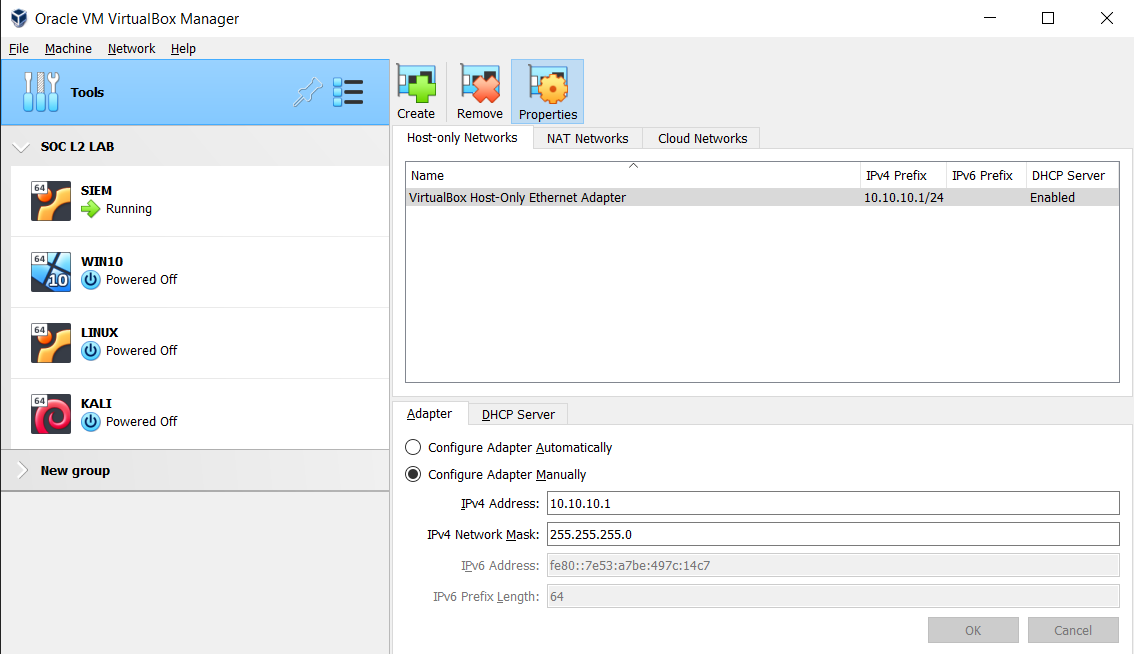

VirtualBox Host‑Only adapter configuration. DHCP server disabled.

Settings & Tool Installation

SIEM

Static IP configuration (/etc/network/interfaces):

auto lo
iface lo inet loopback

allow-hotplug enp0s3
iface enp0s3 inet dhcp
metric 10

allow-hotplug enp0s8
iface enp0s8 inet static
address 10.10.10.10
netmask 255.255.255.0
gateway 10.10.10.1
metric 20

Commands:

apt install ifupdown net-tools
apt remove --purge netplan.io
ifup enp0s8
systemctl disable ifupdown-wait-online.service
systemctl mask ifupdown-wait-online.service
systemctl stop systemd-networkd
systemctl disable systemd-networkd
systemctl mask systemd-networkd
systemctl mask systemd-networkd-wait-online.service

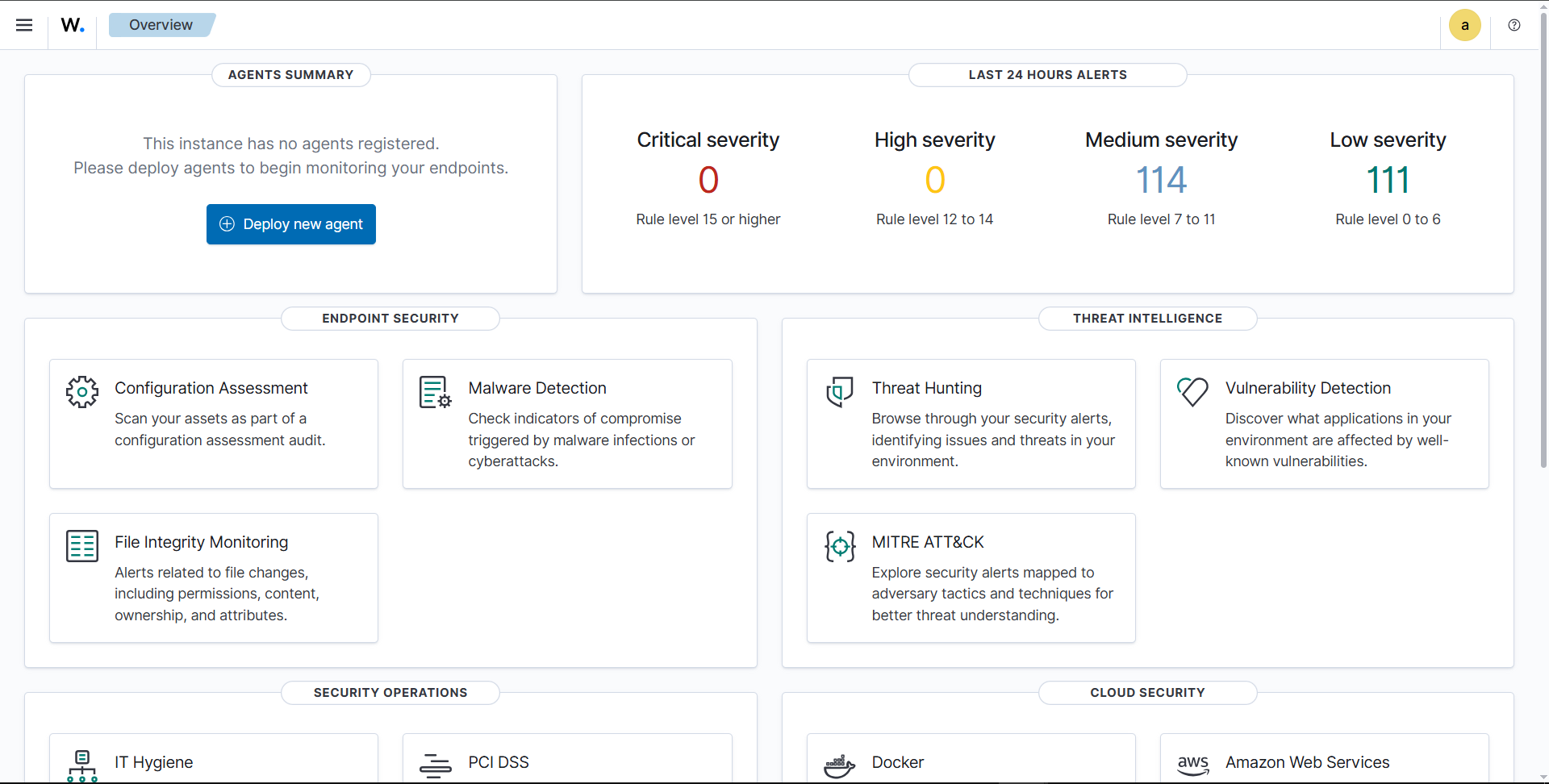

Wazuh Manager installation:

curl -sO https://packages.wazuh.com/4.14/wazuh-install.sh && sudo bash ./wazuh-install.sh -a

# Disable Wazuh updates
sed -i "s/^deb /#deb /" /etc/apt/sources.list.d/wazuh.list
apt update

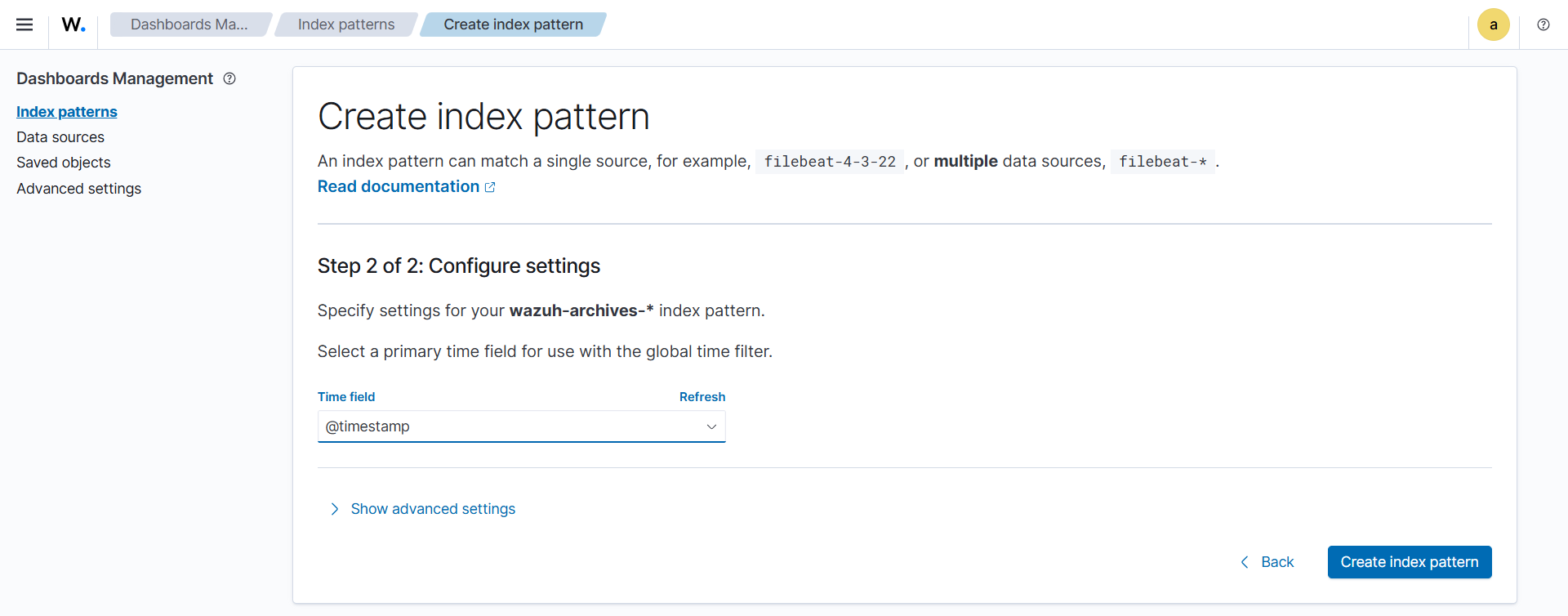

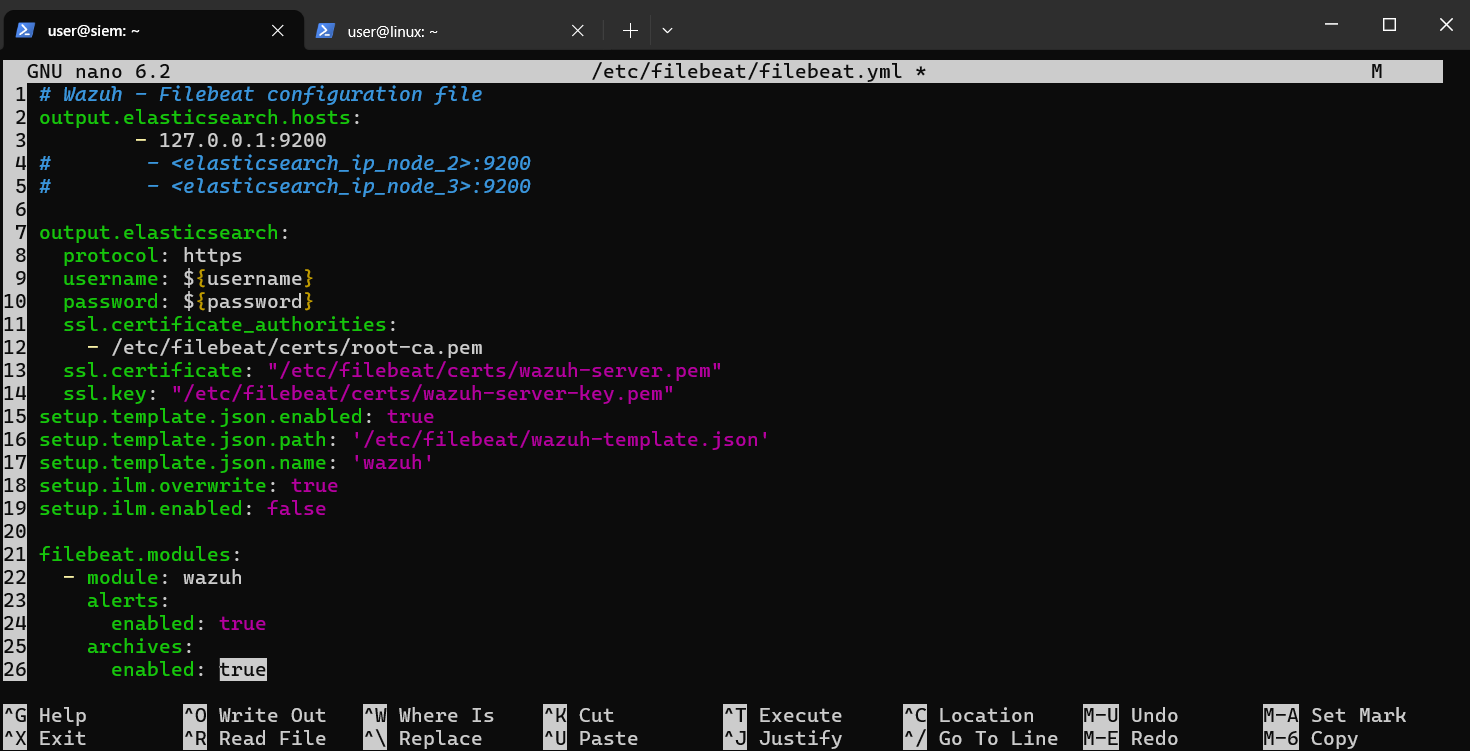

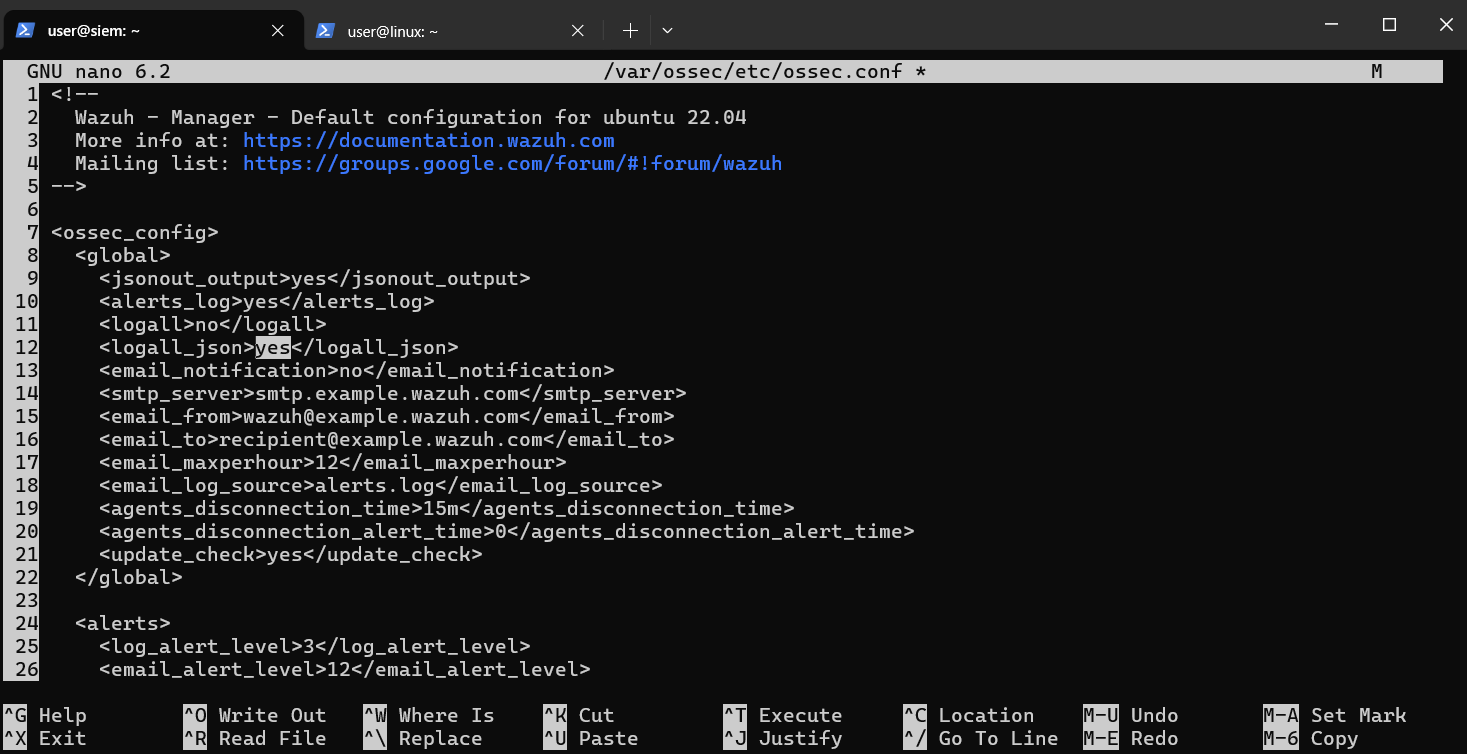

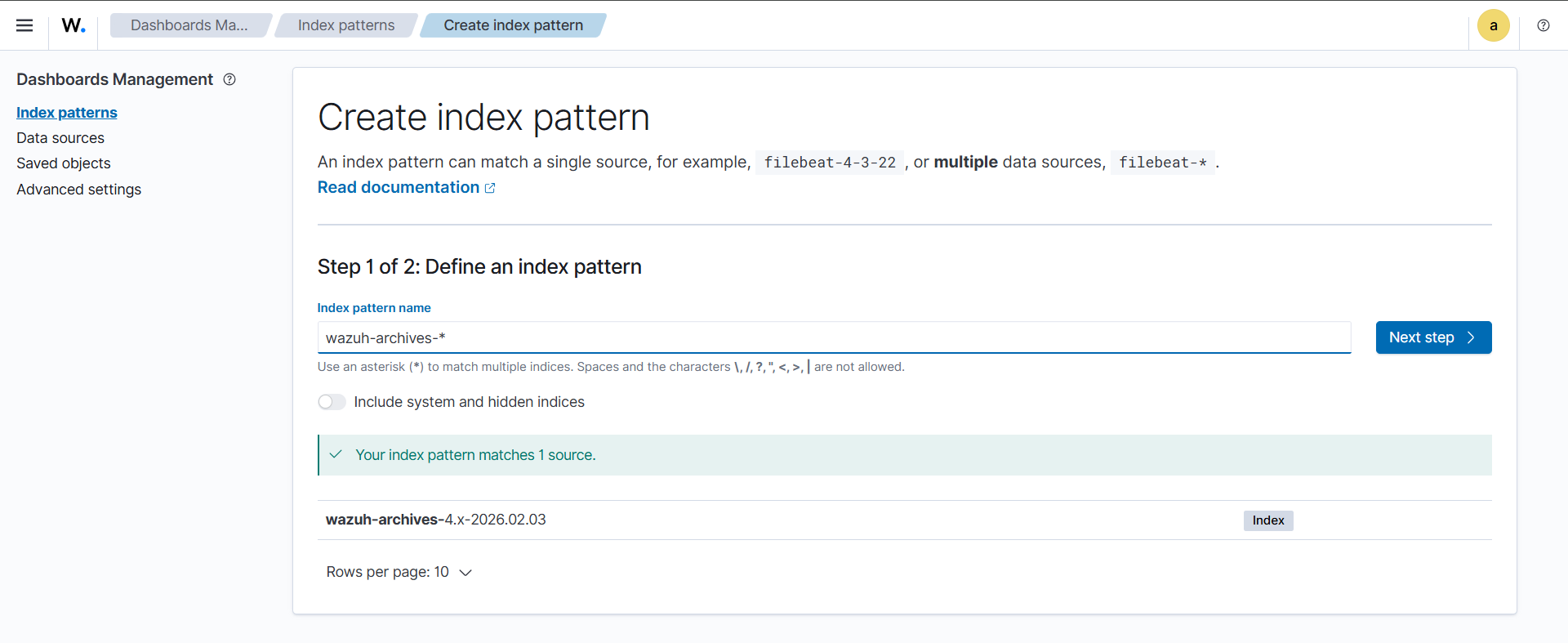

Configure Manager to see all logs, Filebeat archives, and index patterns:

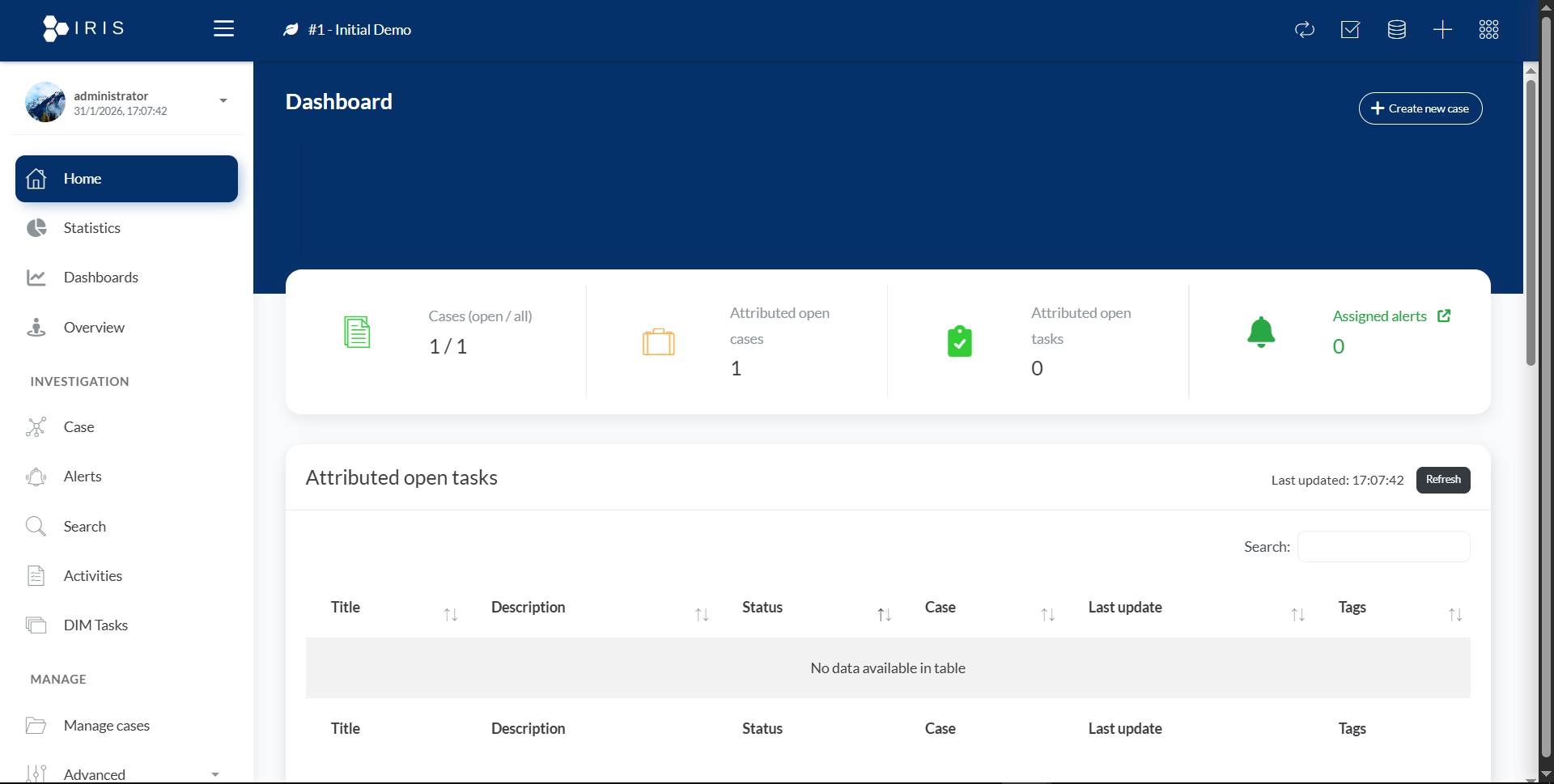

DFIR‑IRIS Installation

cd /opt
git clone https://github.com/dfir-iris/iris-web.git
cd iris-web
git checkout v2.4.20

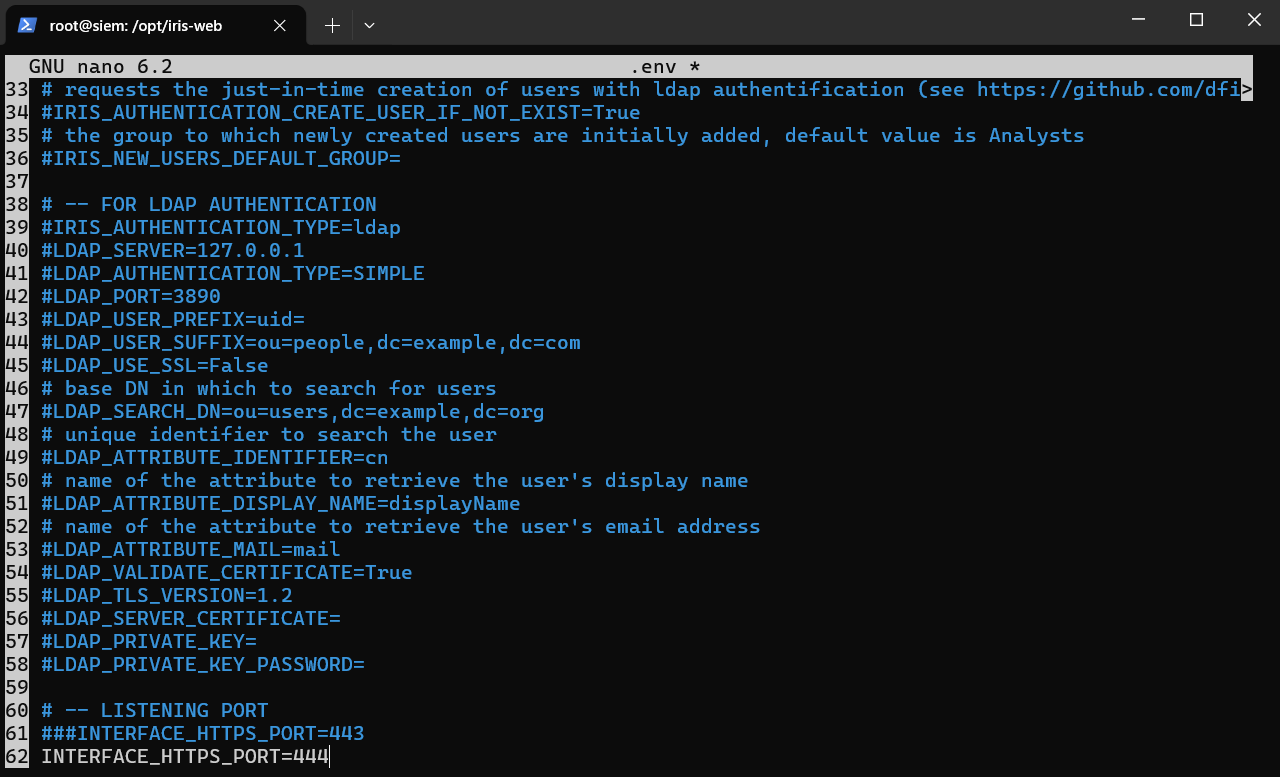

cp .env.model .env

apt install docker docker-compose

DOCKER_CONFIG=${DOCKER_CONFIG:-$HOME/.docker}
mkdir -p $DOCKER_CONFIG/cli-plugins
curl -SL https://github.com/docker/compose/releases/download/v5.0.1/docker-compose-linux-x86_64 -o $DOCKER_CONFIG/cli-plugins/docker-compose
chmod +x $DOCKER_CONFIG/cli-plugins/docker-compose

docker compose pull
docker compose up
docker compose logs app | grep 'administrator'

WIN10

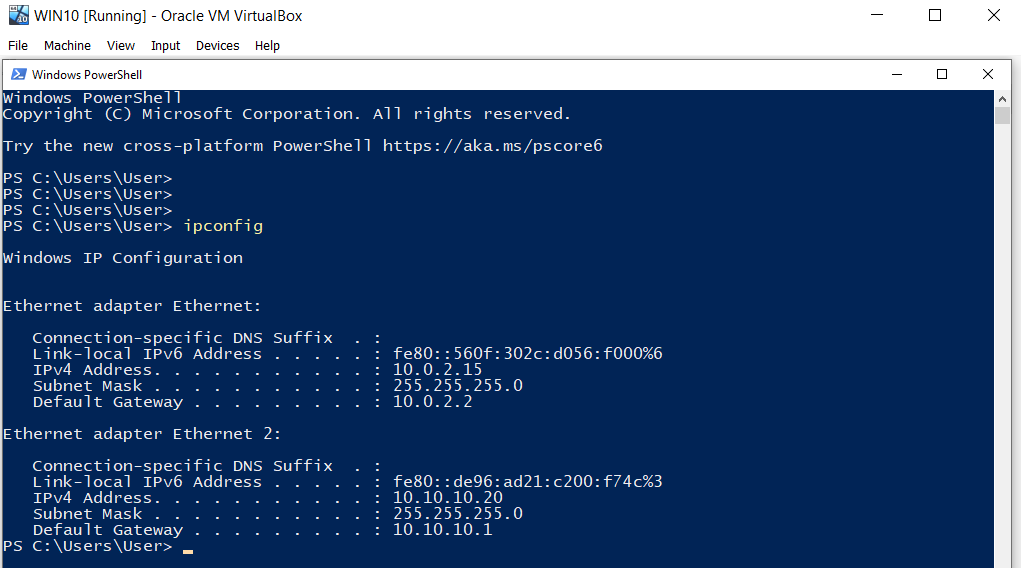

Static IP configuration:

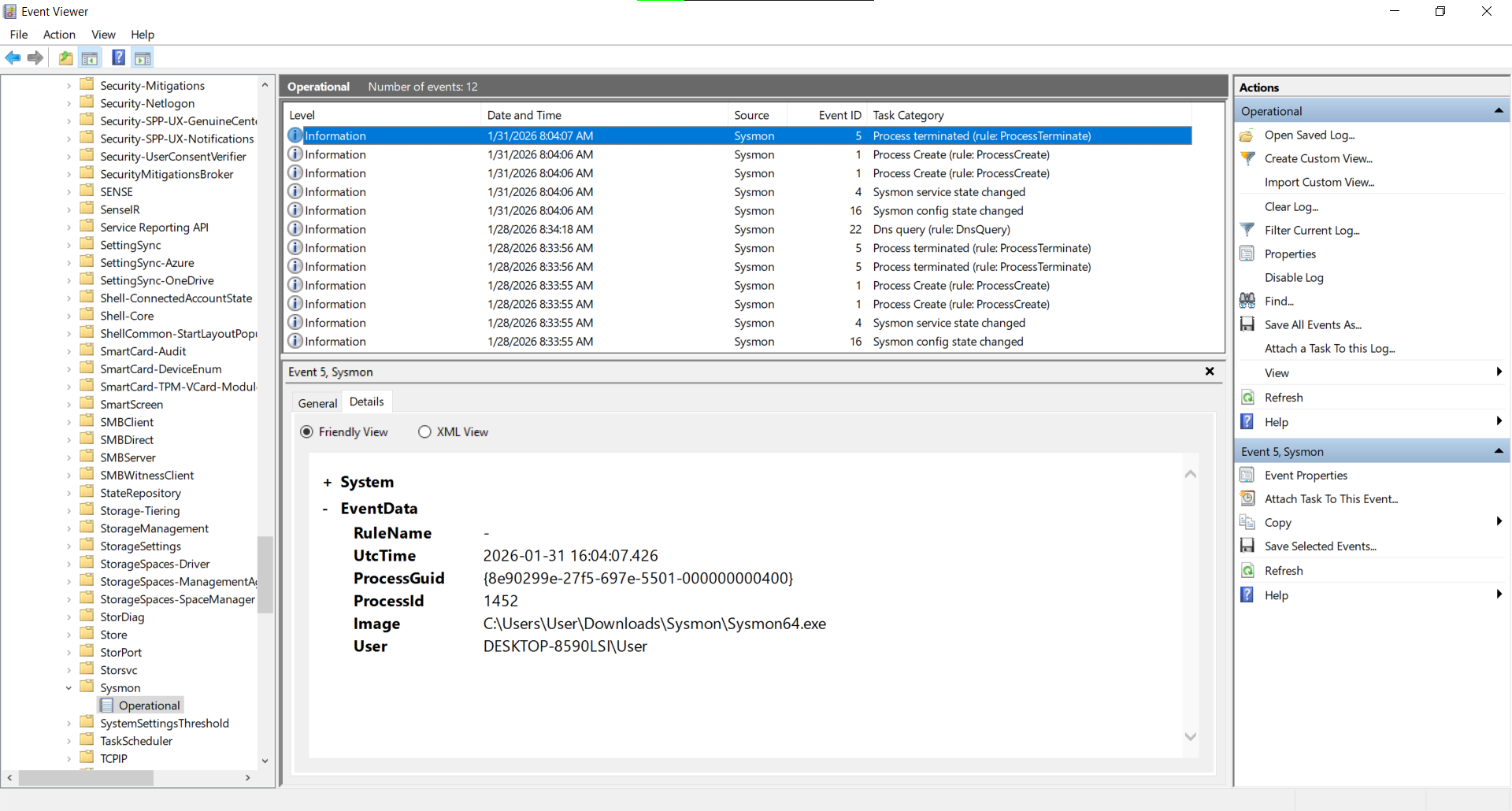

Sysmon installation and configuration:

https://download.sysinternals.com/files/Sysmon.zip
https://github.com/SwiftOnSecurity/sysmon-config/blob/master/sysmonconfig-export.xml

cd C:\Users\User\Downloads
.\sysmon64.exe -accepteula -i sysmonconfig-export.xml

Wazuh Agent deployed:

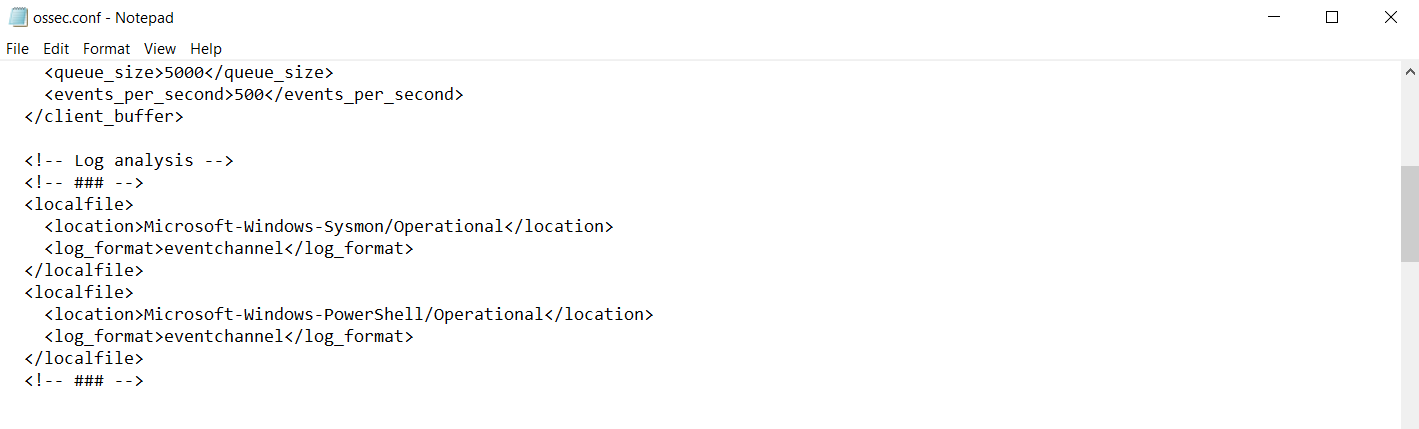

Wazuh Agent configuration (C:\Program Files (x86)\ossec-agent\ossec.conf):

Restart-Service Wazuh

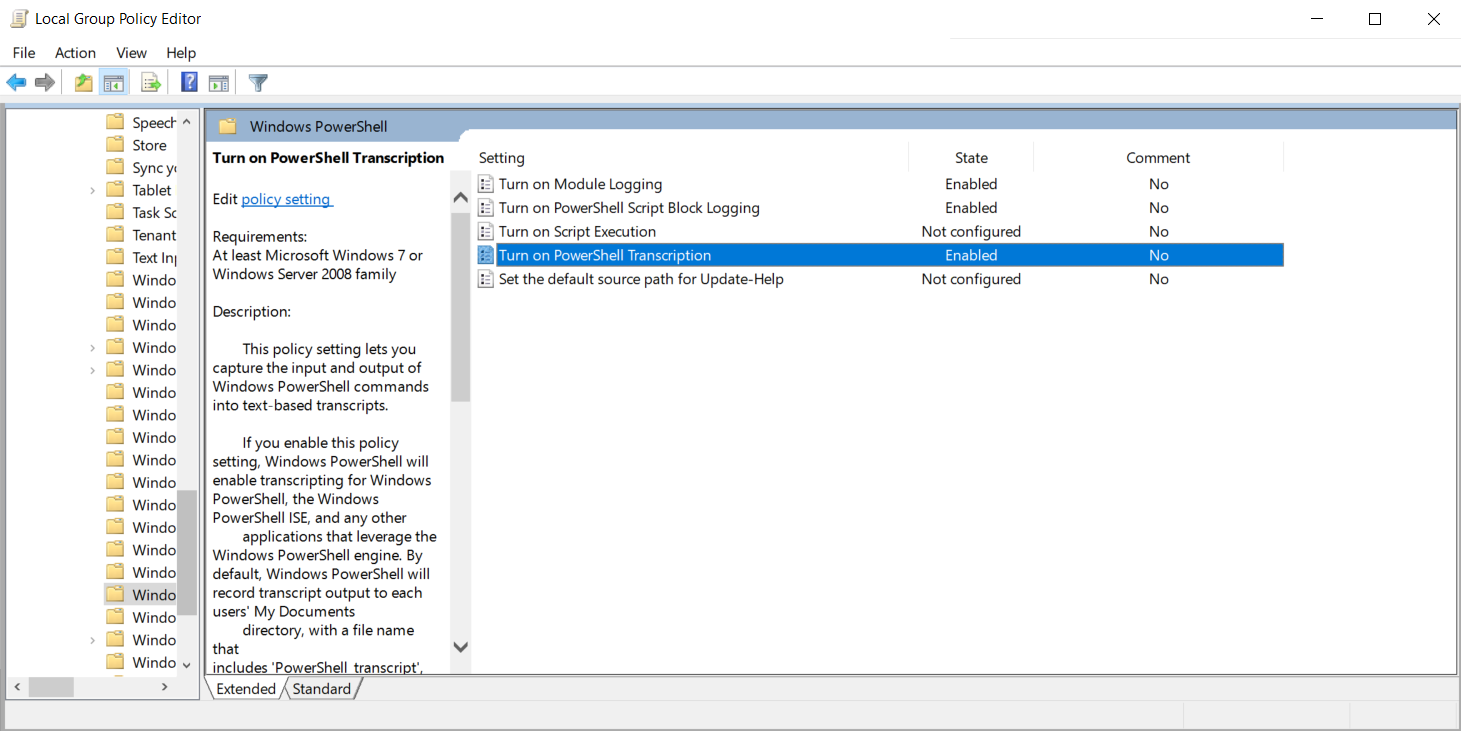

PowerShell logging:

gpedit.msc
Computer Configuration
→ Administrative Templates
→ Windows Components
Enable:
- Turn on PowerShell Script Block Logging
- Turn on PowerShell Module Logging (*, all)
- Turn on PowerShell Transcription (C:\PSLogs)

Audit policies:

secpol.msc
Security Settings
→ Advanced Audit Policy Configuration
→ System Audit Policies

Account Logon → Success, Failure
Account Management → Success, Failure
Logon/Logoff → Success, Failure
Audit Special Logon → Success
Object Access → Success, Failure
Policy Change → Success
Privilege Use → Success, Failure
Process Creation → Success

gpupdate /force

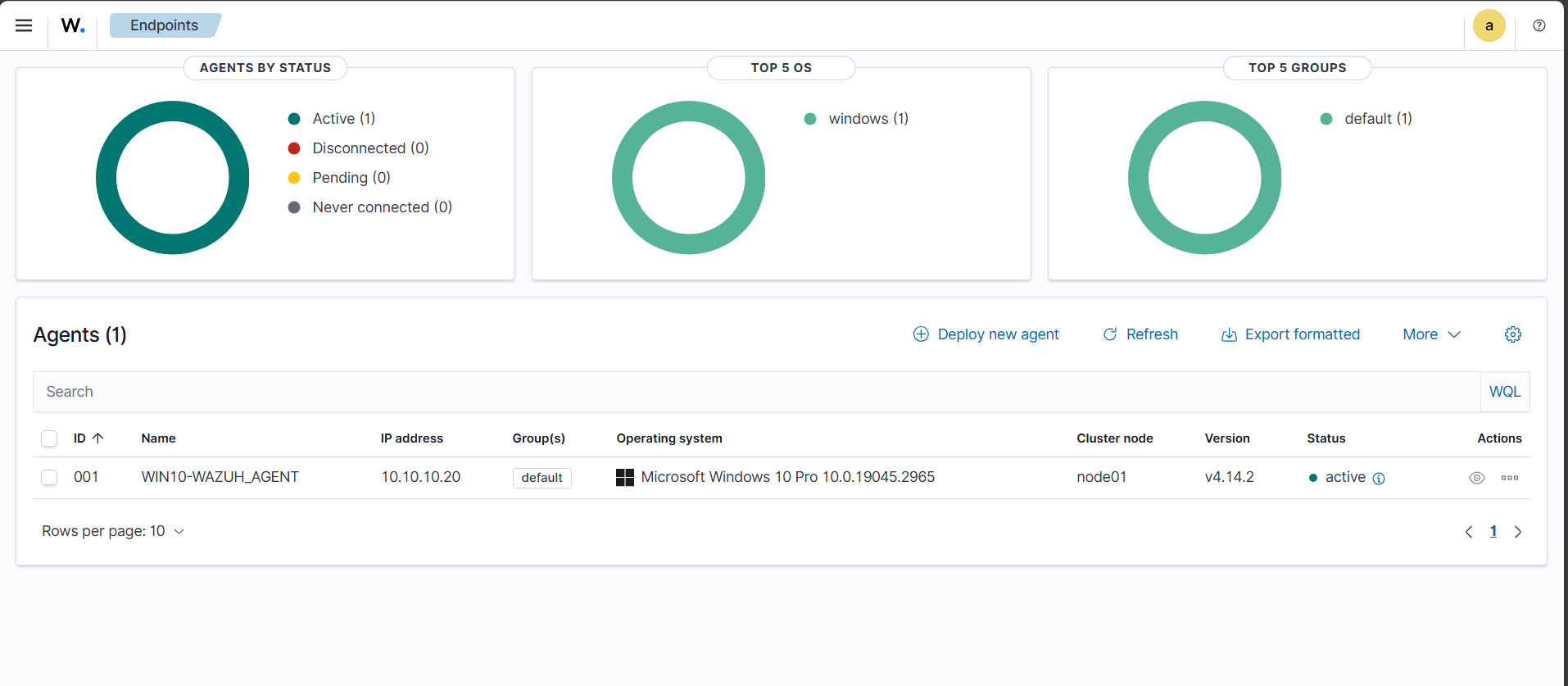

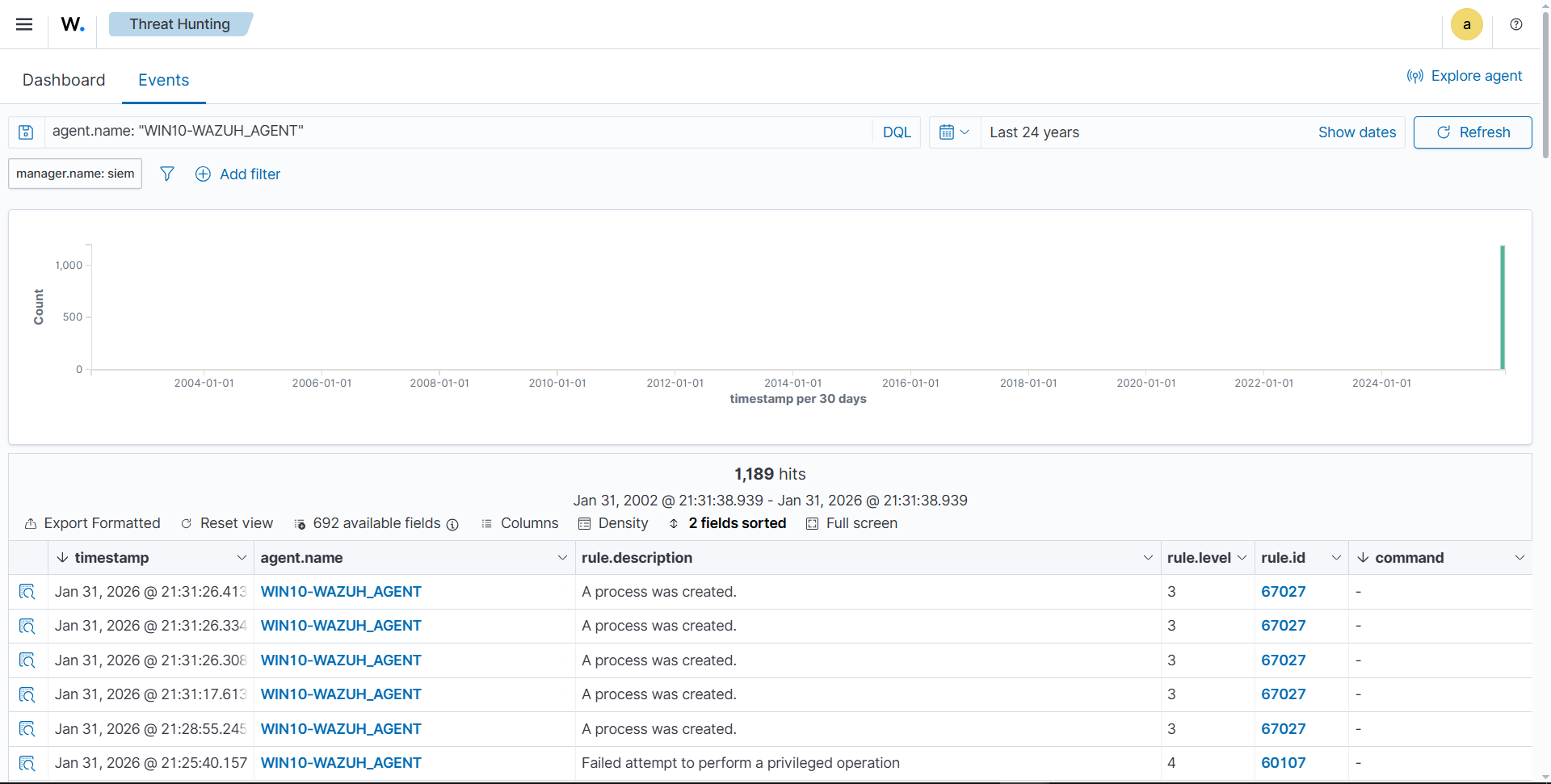

Checking Wazuh Agent sending logs:

LINUX

Static IP configuration (/etc/network/interfaces):

auto lo
iface lo inet loopback

allow-hotplug enp0s3
iface enp0s3 inet dhcp
metric 10

allow-hotplug enp0s8
iface enp0s8 inet static
address 10.10.10.30
netmask 255.255.255.0
gateway 10.10.10.1
metric 20

Commands:

apt install ifupdown net-tools
apt remove --purge netplan.io
ifup enp0s8
systemctl disable ifupdown-wait-online.service
systemctl mask ifupdown-wait-online.service
systemctl stop systemd-networkd
systemctl disable systemd-networkd
systemctl mask systemd-networkd
systemctl mask systemd-networkd-wait-online.service

Wazuh Agent installation:

wget https://packages.wazuh.com/4.x/apt/pool/main/w/wazuh-agent/wazuh-agent_4.14.2-1_amd64.deb
sudo WAZUH_MANAGER='10.10.10.10' WAZUH_AGENT_NAME='LINUX-WAZUH_AGENT' dpkg -i ./wazuh-agent_4.14.2-1_amd64.deb
sudo systemctl daemon-reload
sudo systemctl enable wazuh-agent
sudo systemctl start wazuh-agent

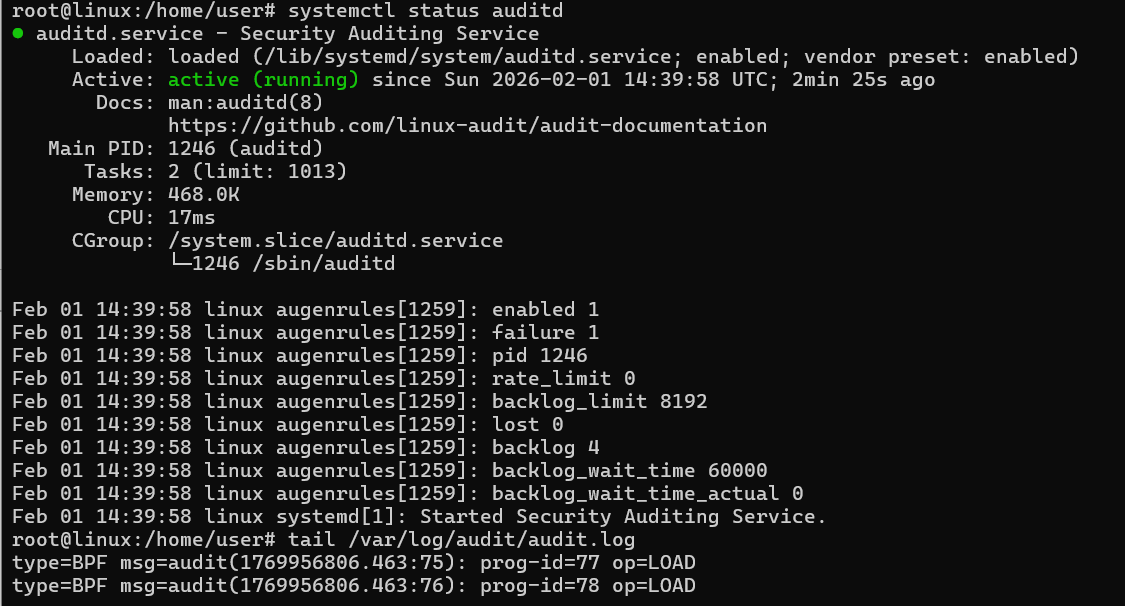

auditd rules:

apt install auditd audispd-plugins
systemctl enable --now auditd

rsyslog:

sudo apt install rsyslog
sudo systemctl enable --now rsyslog

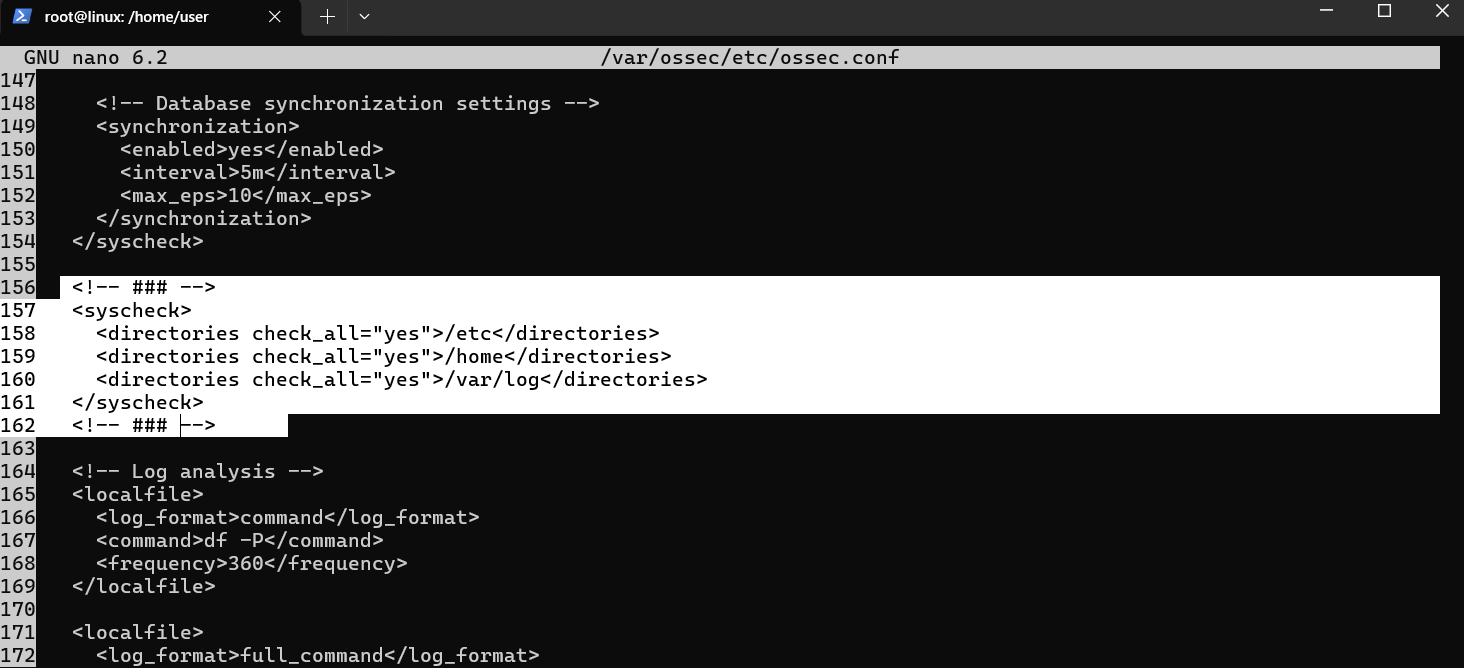

FIM configuration (/var/ossec/etc/ossec.conf):

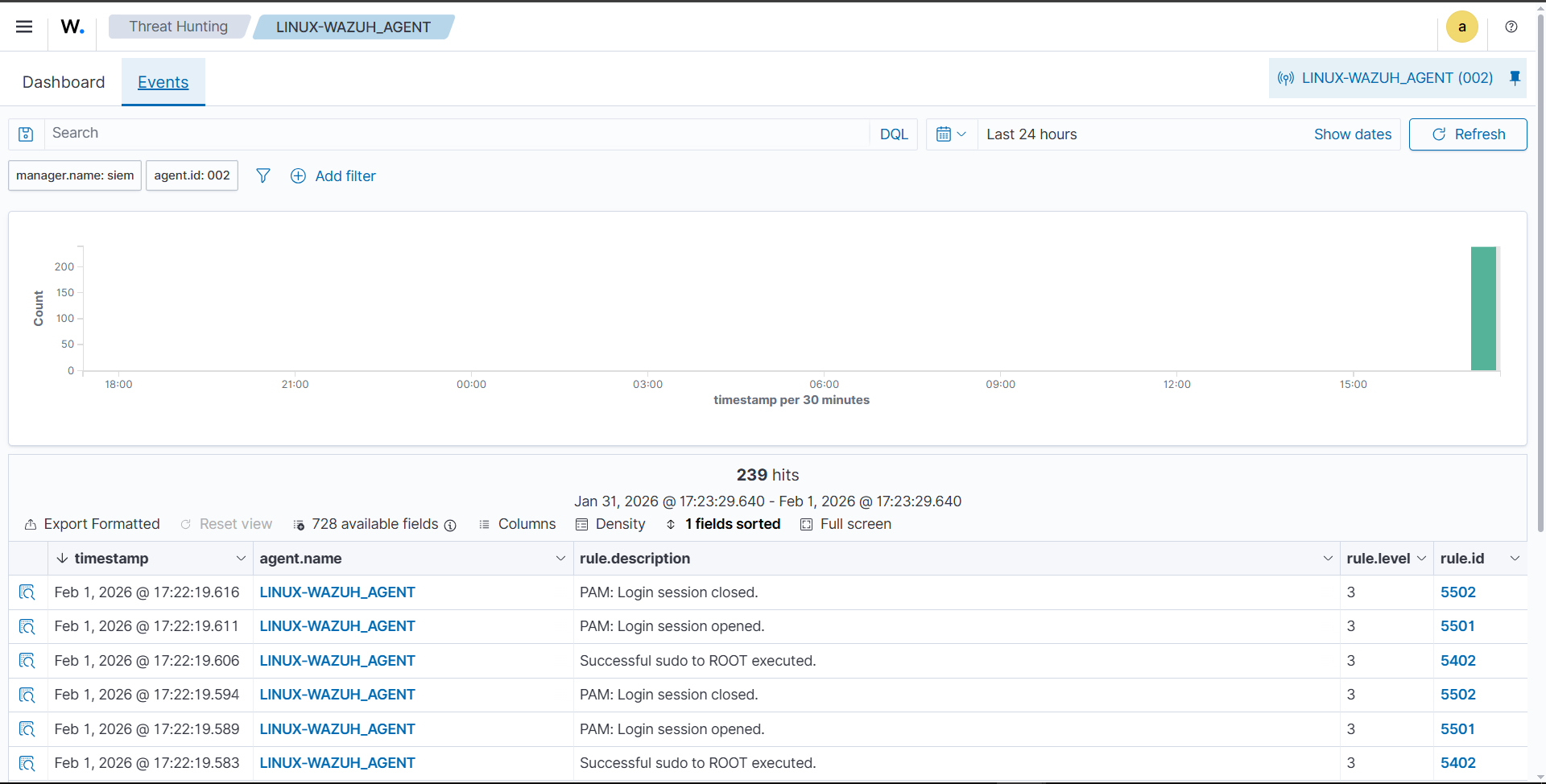

Checking Wazuh Agent sending logs:

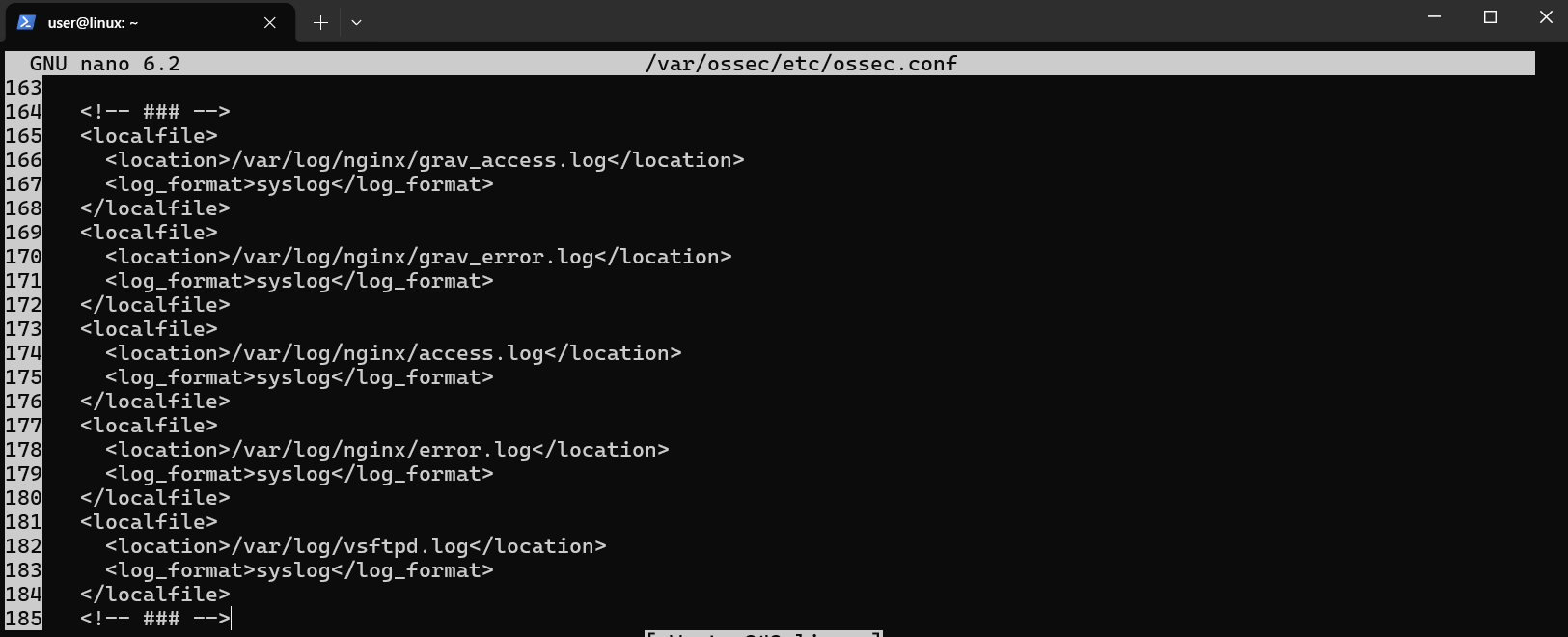

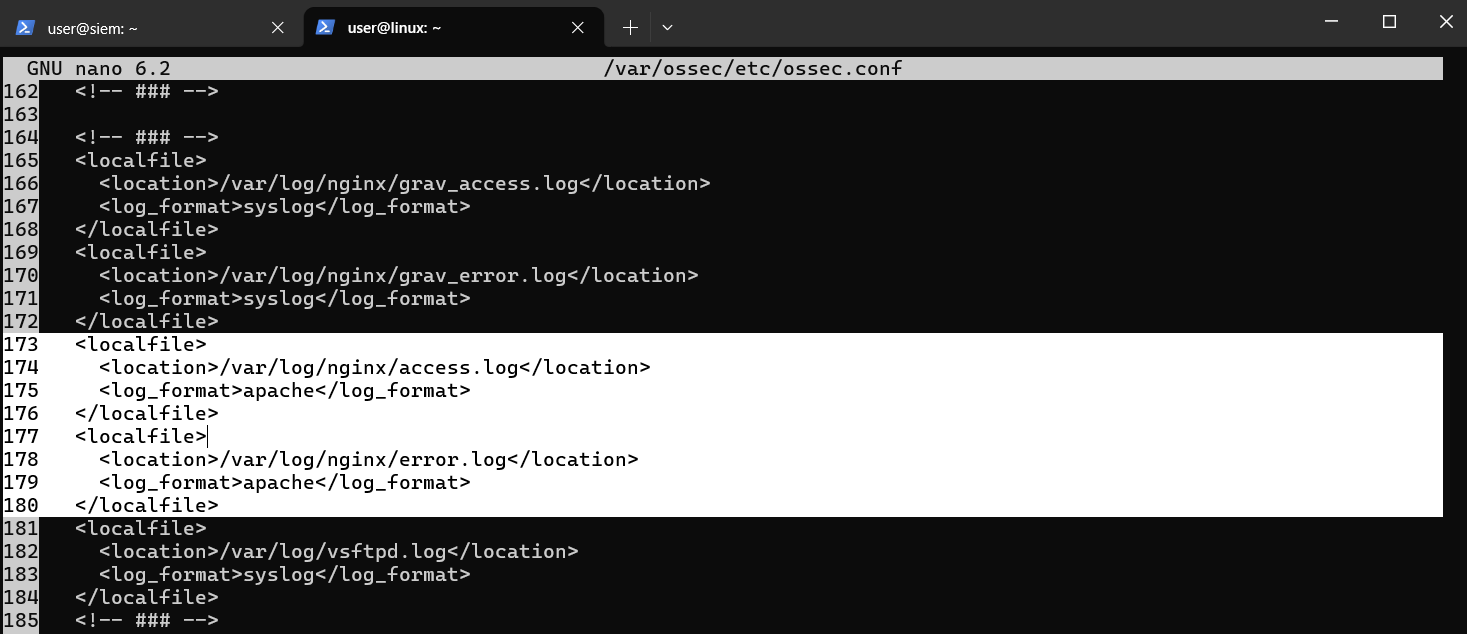

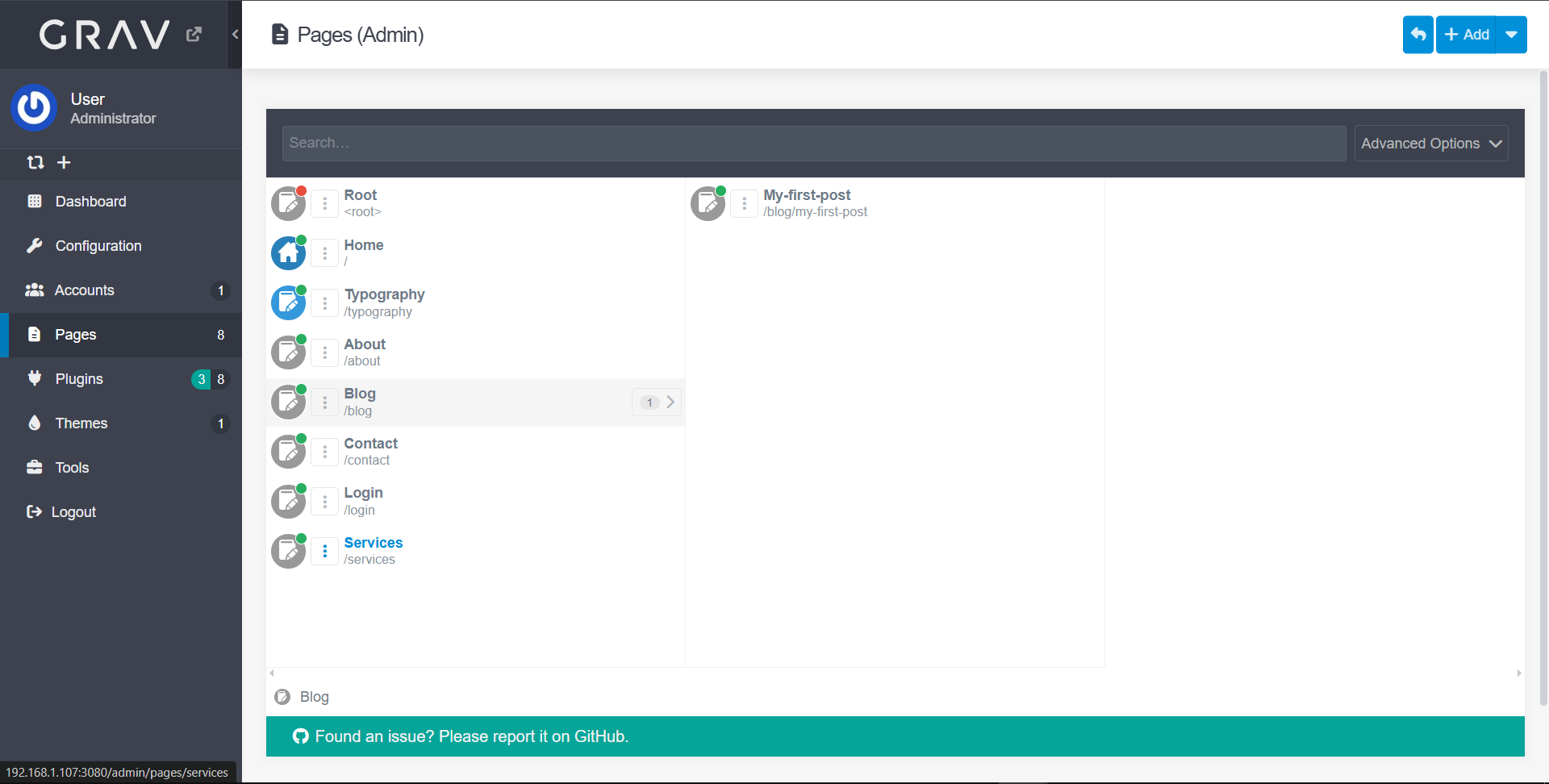

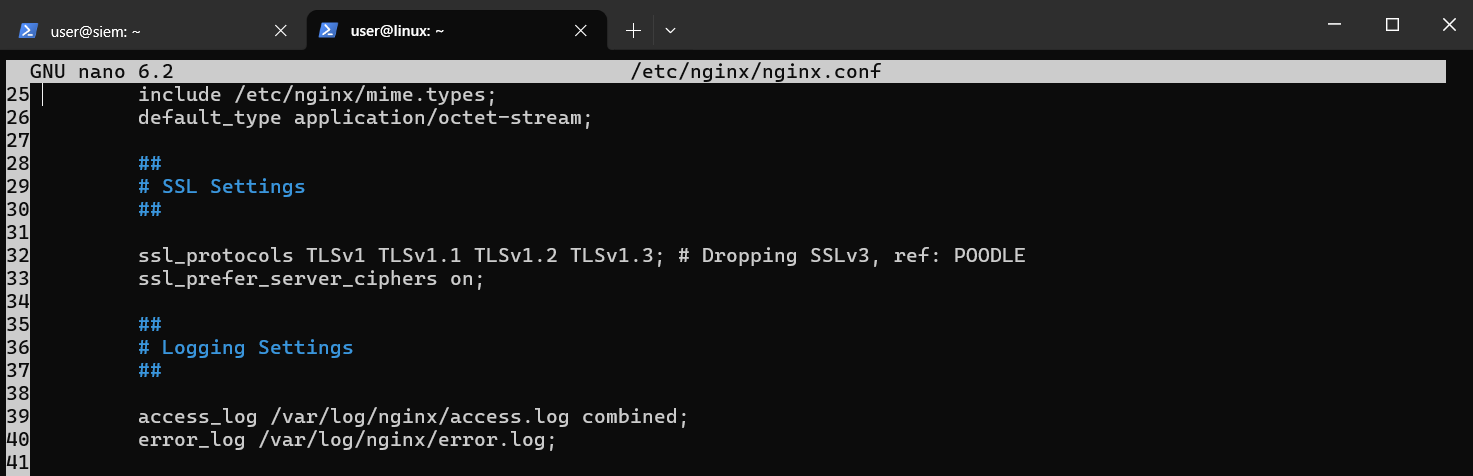

Service configuration (Nginx + GravCMS, FTP) and agent configuration:

sudo apt update
sudo apt install -y nginx php php-fpm php-zip php-yaml php-gd php-curl php-mbstring unzip
sudo apt install php-dom php-simplexml php-xml

cd /var/www
sudo wget https://getgrav.org/download/core/grav-admin/latest -O grav.zip
sudo unzip grav.zip -d grav
sudo chown -R www-data:www-data grav

sudo nano /etc/nginx/sites-available/grav
server {
    listen 80;
    server_name 10.10.10.30;

    root /var/www/grav;
    index index.php;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        include snippets/fastcgi-php.conf;
        fastcgi_pass unix:/run/php/php8.1-fpm.sock;
    }

    access_log /var/log/nginx/grav_access.log;
    error_log /var/log/nginx/grav_error.log;
}

sudo ln -s /etc/nginx/sites-available/grav /etc/nginx/sites-enabled/
sudo nginx -t

sudo mv /var/www/grav/grav-admin/* /var/www/grav/
sudo mv /var/www/grav/grav-admin/.* /var/www/grav/ 2>/dev/null
sudo rmdir /var/www/grav/grav-admin

sudo chown -R www-data:www-data /var/www/grav
sudo chmod -R 755 /var/www/grav

sudo systemctl restart php8.1-fpm
sudo systemctl restart nginx

sudo systemctl restart wazuh-agent

# vsftpd
sudo apt update && sudo apt install vsftpd -y

# Weak user
sudo useradd -m testuser
sudo passwd testuser

KALI

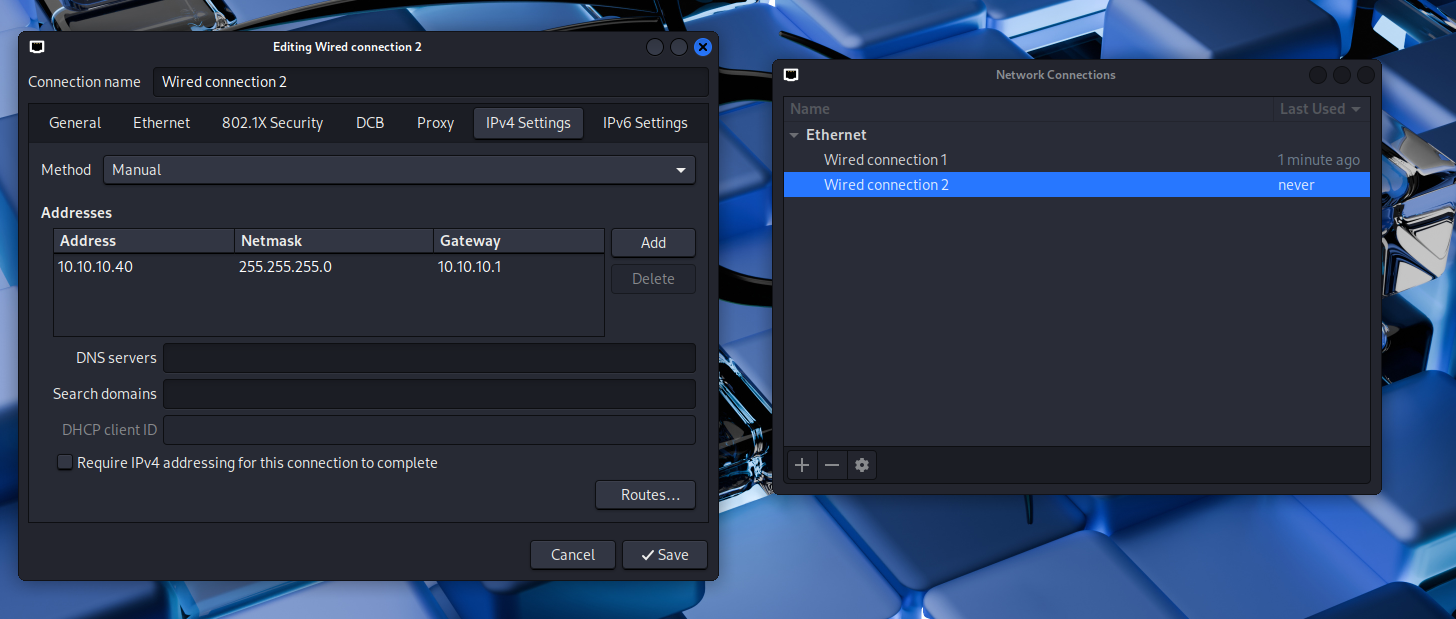

Static IP configuration:

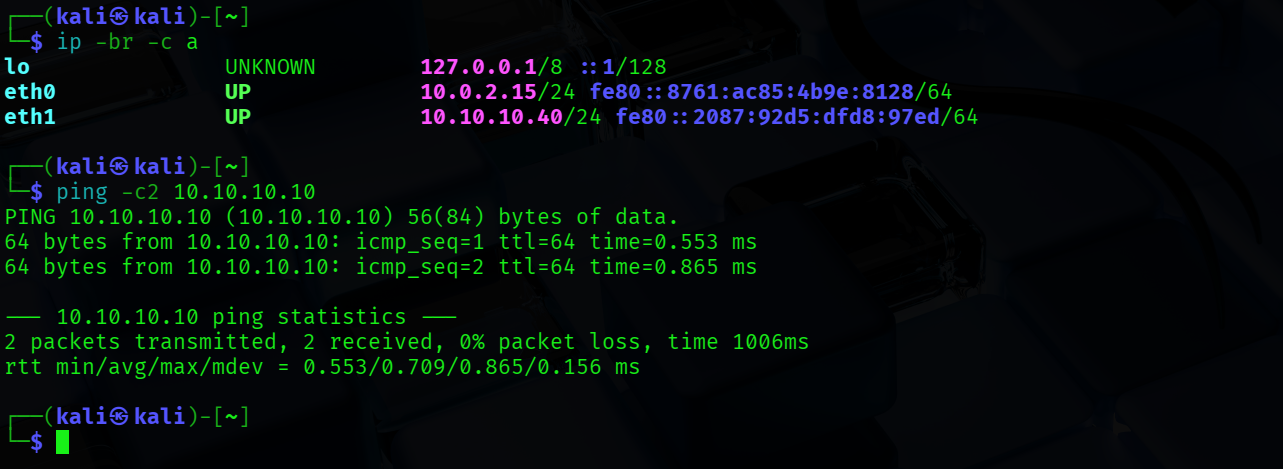

Connectivity tests:
